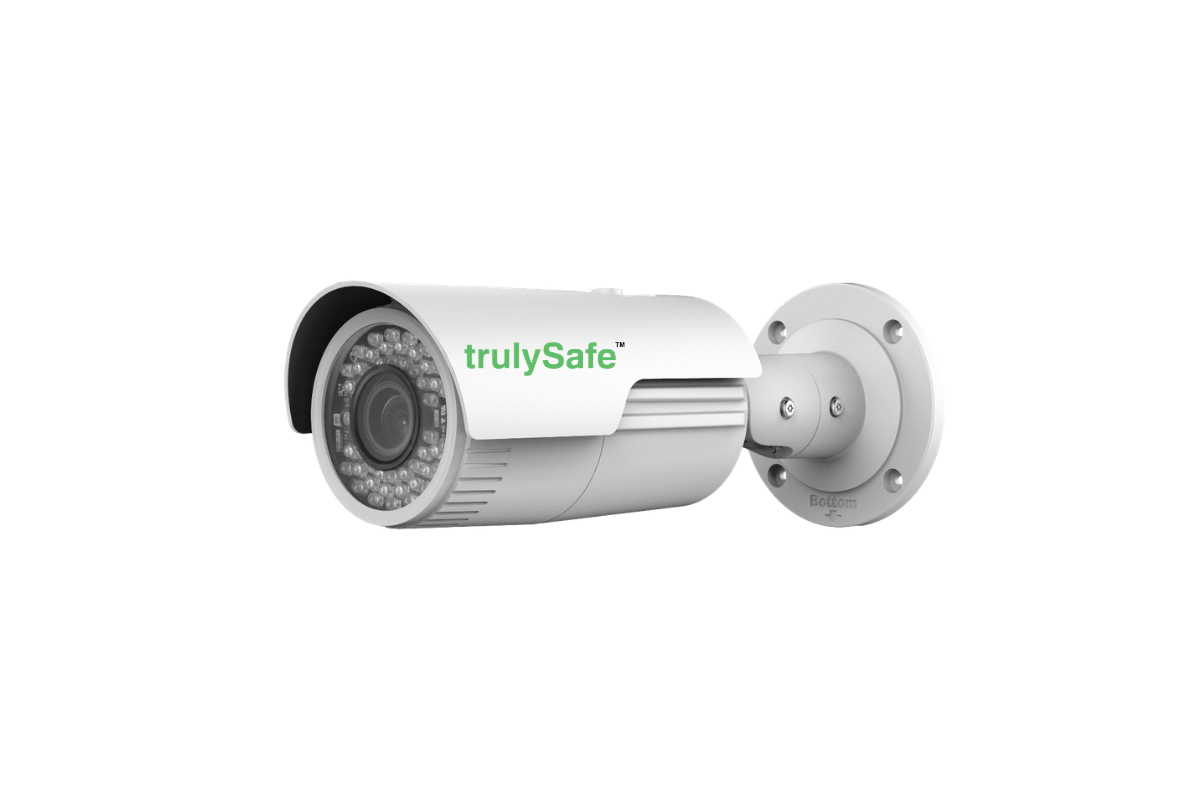

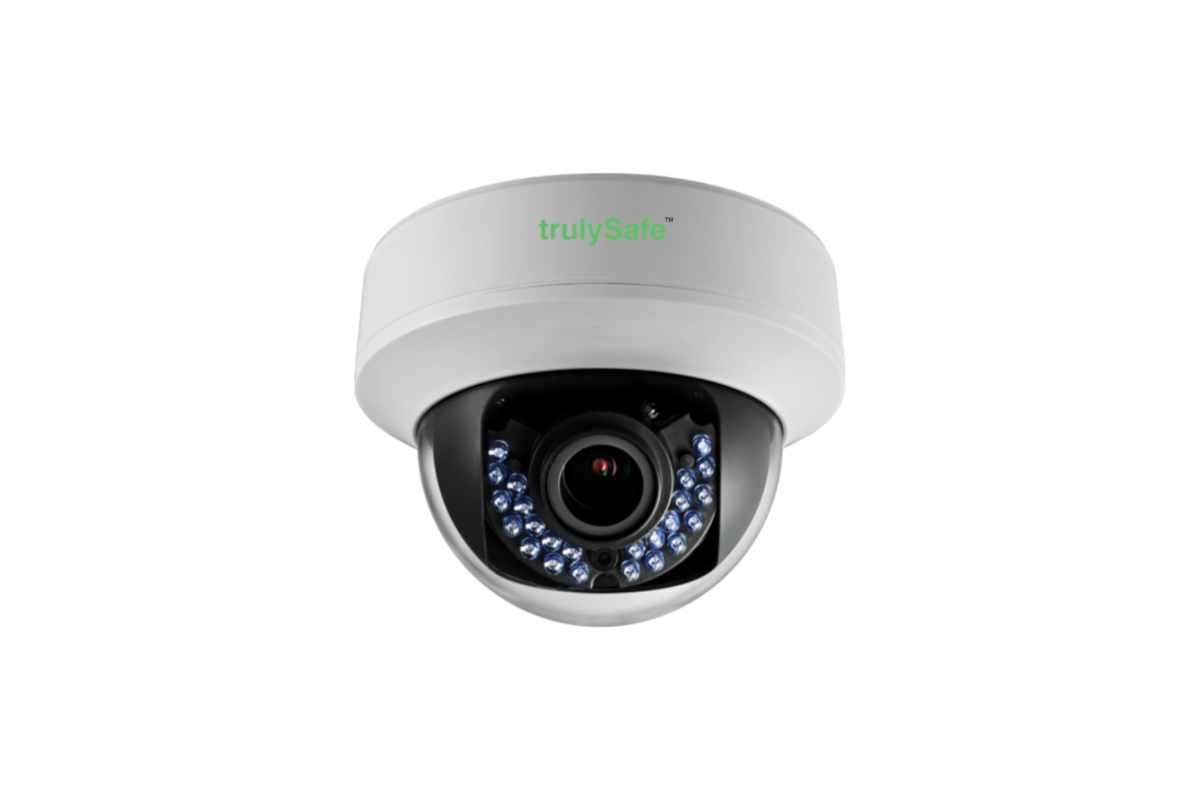

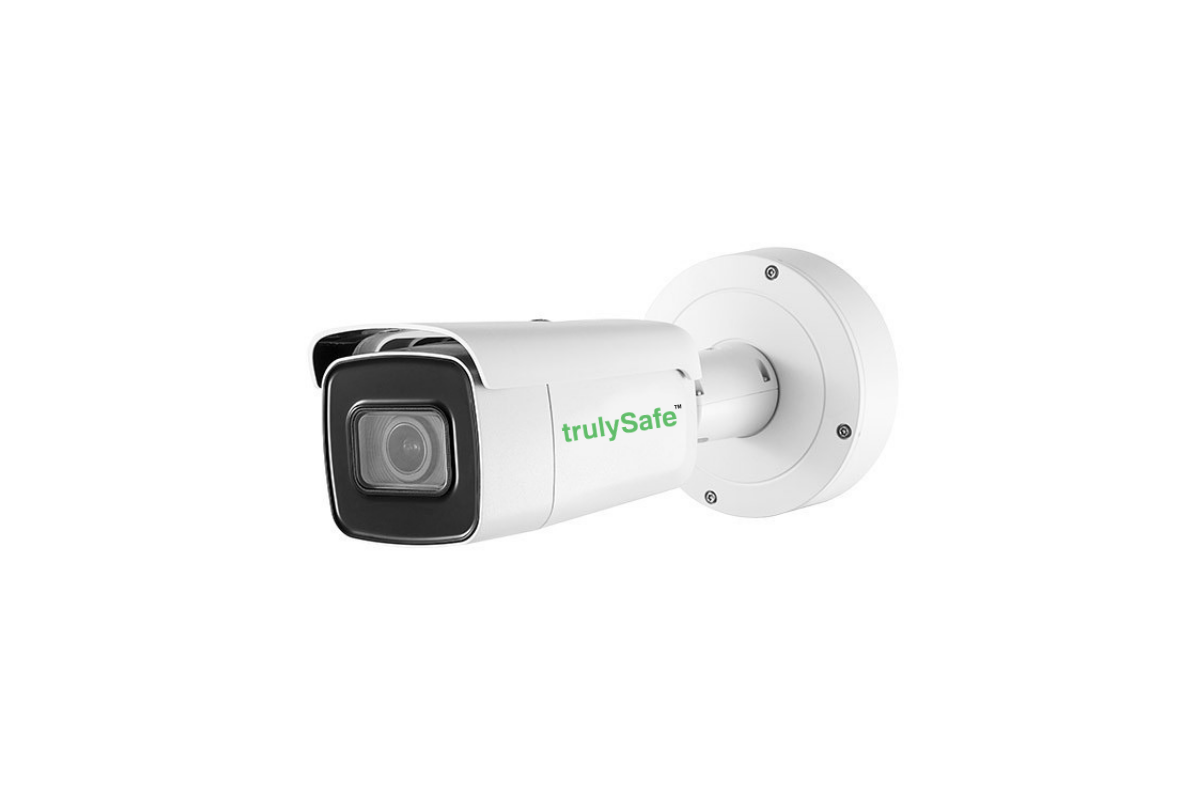

trulySafe 2 MP IP Cameras provides best surveillance which are of two kinds Dome and Bullet however depending upon the usability one can choose between fixed lens or Varifocal lens. The cameras come with the latest compression technique and on top of it comes with inbuilt AVCA compression that cuts down storage to 70% less. With the help of latest technologies our cameras can decrease the cost of storage which make the surveillance very cost effective.
2MP IP Camera
|
|
|
|
|---|---|---|---|
Description |
TS-2MPFLDC |
TS-2MPFLBC |
TS-2MPVLBC |
Mega Pixel |
2MP | 2MP | 2MP |
Type of Lens |
Fixed Lens | Fixed Lens | Varifocal Lens |
Structure |
Dome | Bullet | Bullet |
Image Sensor |
1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS |
Shutter time |
1/3 s to 1/100,000 s | 1/3 s to 1/100,000 s | 1/3 s to 1/100,000 s |
Day& Night |
IR cut filter with auto switch | IR cut filter with auto switch | IR cut filter with auto switch |
Lens |
4mm@ F2.0 | 4mm@ F2.0 | 2.8 - 12 mm @ F1.4, motorized lens (-Z), angle of view: 106°~35° |
Digital Noise Reduction |
3DNR | 3DNR | 3DNR |
Video Compression |
H.264/MJPEG/H.265 | H.264/MJPEG/H.265 | H.264/MJPEG/H.265 |
Additional Compression |
AVCA Technology | AVCA Technology | AVCA Technology |
Video Bit rate |
32Kbps~8Mbps | 32Kbps~8Mbps | 32Kbps~16Mbps |
Max. Image Resolution |
1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
Frame Rate |
50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) | 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) |
Network Storage |
NAS (Support NFS,SMB/CIFS) | NAS (Support NFS,SMB/CIFS) | NAS (Support NFS,SMB/CIFS) |
Alarm Trigger |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protocol |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Communication Interface |
1 RJ45 10M / 100M Ethernet interface | 1 RJ45 10M / 100M Ethernet interface | 1 RJ45 10M / 100M Ethernet interface |
System Compatibility |
ONVIF | ONVIF | ONVIF |
Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) | -30 °C ~ 60 °C (-22 °F ~ 140 °F) | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Power Consumption |
Max. 5.8W | Max. 5.3W | Max. 5.5W |
Power Supply |
12 V DC ± 10%, PoE | 12 V DC ± 10%, PoE | 12 VDC ± 25%, PoE |
IR Range |
Up to 30m | Up to 30m | Up to 30m |
Weather Proof |
IP67 | IP67 | IP67 |
Dimensions |
70 × 157 × 62 mm | 111 × 82 mm | 140 × 99.9 mm |
Weight |
500g | 500g | 1000g |
